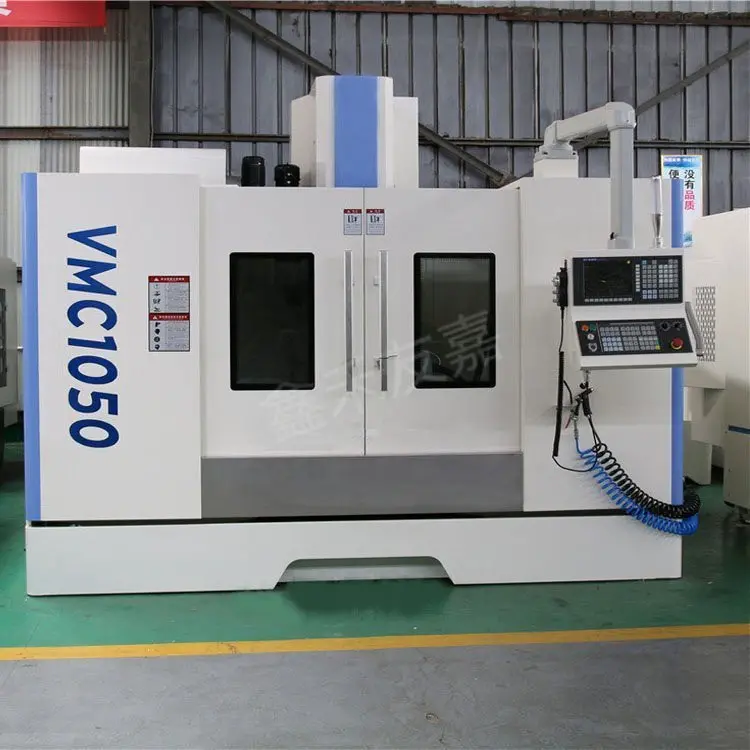

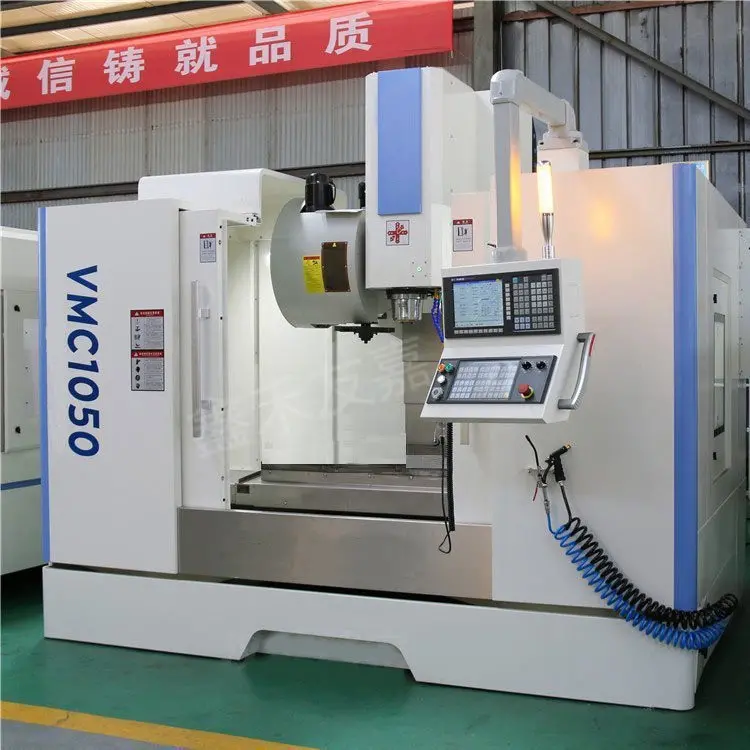

友嘉数控出售VMC1050数控加工中心cnc 中国台湾精密BT40主轴立式加工中心

技术参数Specifications

Units

VMC1050

工作台尺寸Table size

mm

1000x500

X轴行程X axis travel

mm

1000

Y轴行程Y axis travel

500

Z轴行程Z axis travel

550

工作台Z大承重Max.Worktable load

kg

800

T型槽(数量-宽度-间隙)T slot(number-width-pitch)

5-18x100

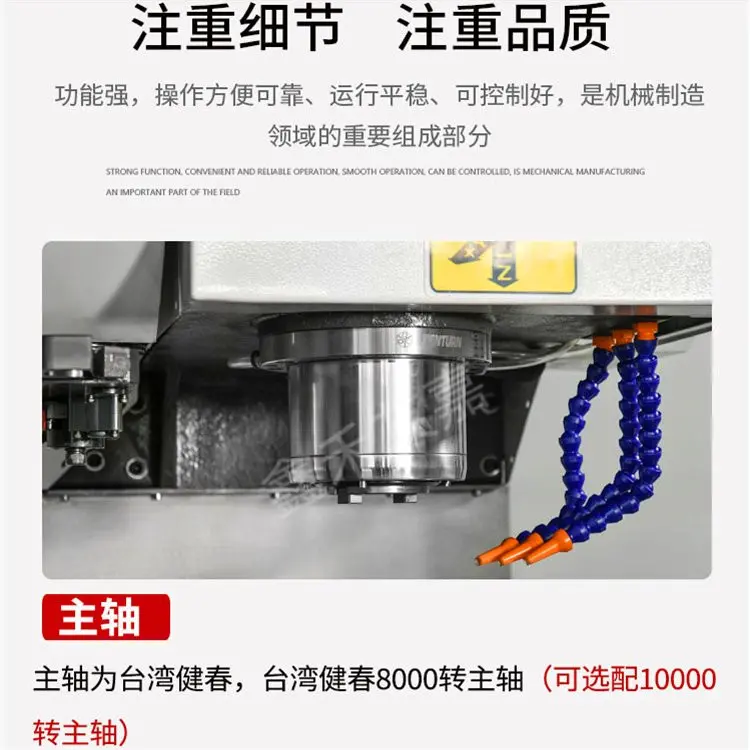

主轴转速Max.Spindlespeed

rpm

8000(Optional:10000)

主轴锥度Spindle taper

BT40

主电机功率Mainmotor power

kW

7.5/11

X/Y/Z轴快移速度X/Y/Z rapid traverse speed

m/min

24/24/12

切削进给速度Cutting feed speed

mm/min

1-8000

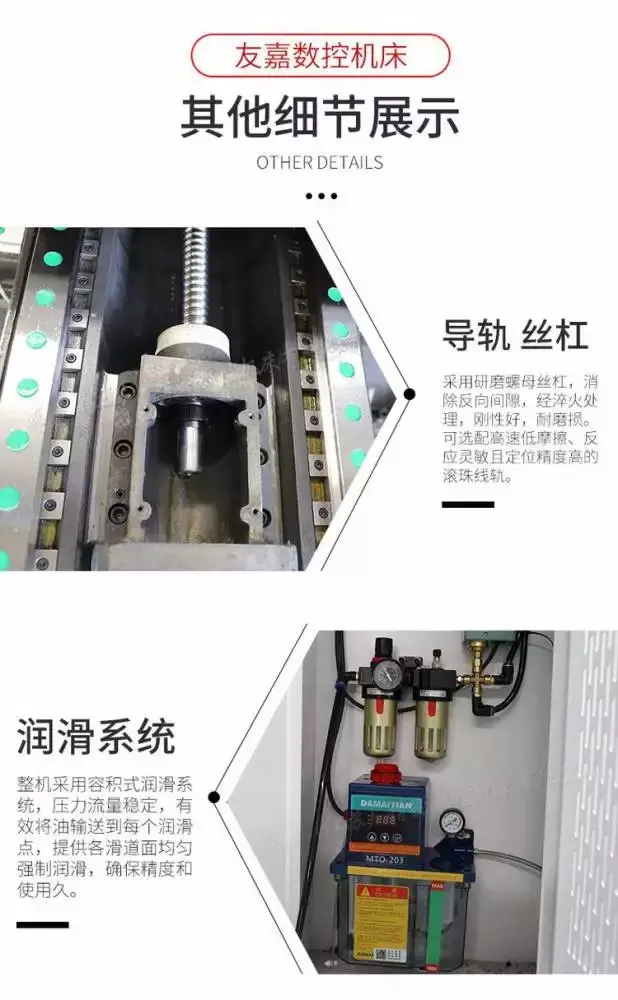

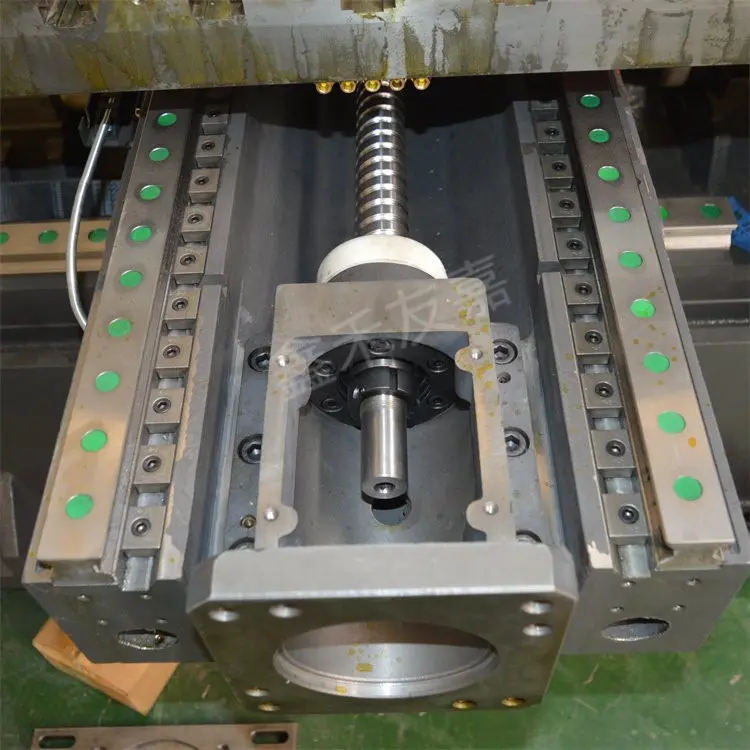

导轨形式Guiderailtype

线轨Hardrail

主轴中心到立柱表面距离

Distance from spindle axis to column surface

600

主轴端部到工作台表面距离

Distance between spindle nose and worktable surface

130-680

定位精度Positioning accuracy

±0.0075

重复定位精度Repeatpositioningaccuracy

±0.005

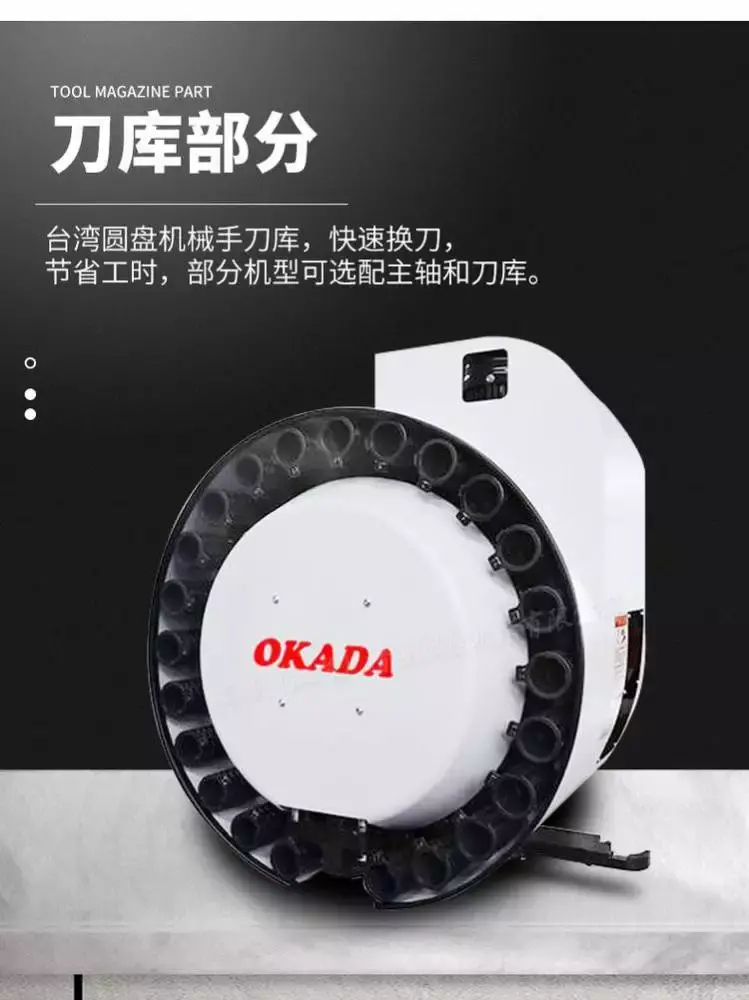

刀库Tool magazine

圆盘Arm 24

刀具Z大直径Max.Tool diameter

Φ78(Adjacent)/Φ120(Apart)

刀具Z大重量Max.Tool weight

8

机床重量Machine weight

6700

外形尺寸Overall dimension

3200x2400x2800
